NF44

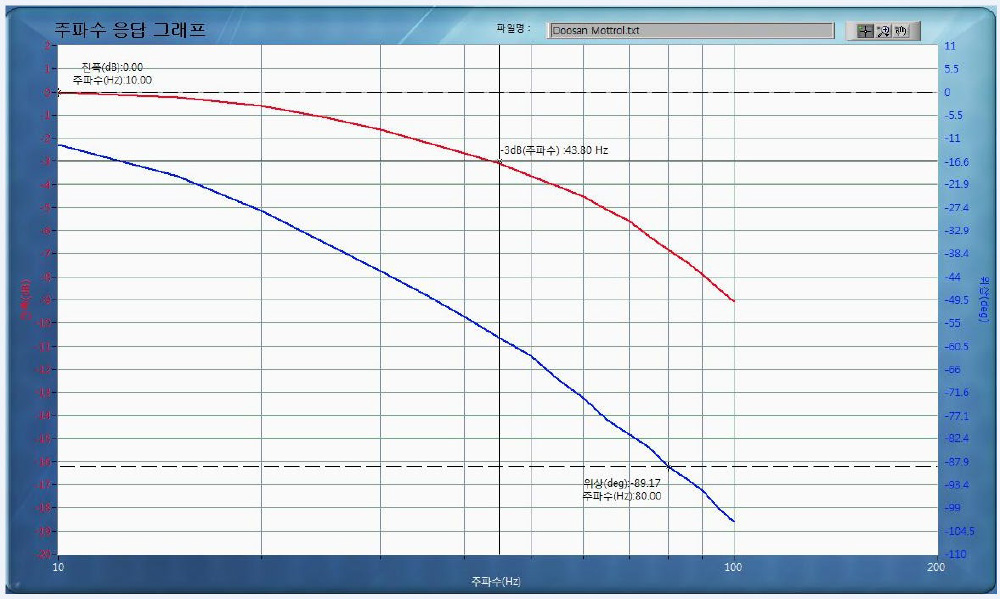

Typical frequency response for Standard Series NF44 Servo valve shown below
NF44
Typical frequency response for Standard Series NF44 Servo valve shown below
| Supply Pressure (no load valve pressure drop) PSI | Rangeof No-Load Rated flow with MIL-PFR-83282 | |||
|---|---|---|---|---|
| MinimumValue | MaximumValue | |||
| CIS | GPM | CIS | GPM | |
| 500 | 34 | 8.8 | 69 | 18 |
| 1000 | 46 | 12 | 100 | 26 |
| 1500 | 56 | 14 | 120 | 31 |
| 2000 | 61 | 16 | 139 | 36 |
| 2500 | 68 | 18 | 155 | 40 |
| 3000 | 73 | 19 | 170 | 44 |
| 3500 | 77 | 20 | 183 | 48 |
| 4000 | 84 | 22 | 196 | 51 |
| Nominal Supply Pressure(psi) | ||||
|---|---|---|---|---|
| 500 | 1000 | 2000 | 3000 | |
| Maximum amplitude ratio | < 2dB | < 2dB | < 2dB | < 2dB |
| Frequency of 90˚ Phase Point | > 40Hz | > 55Hz | > 65Hz | > 80Hz |

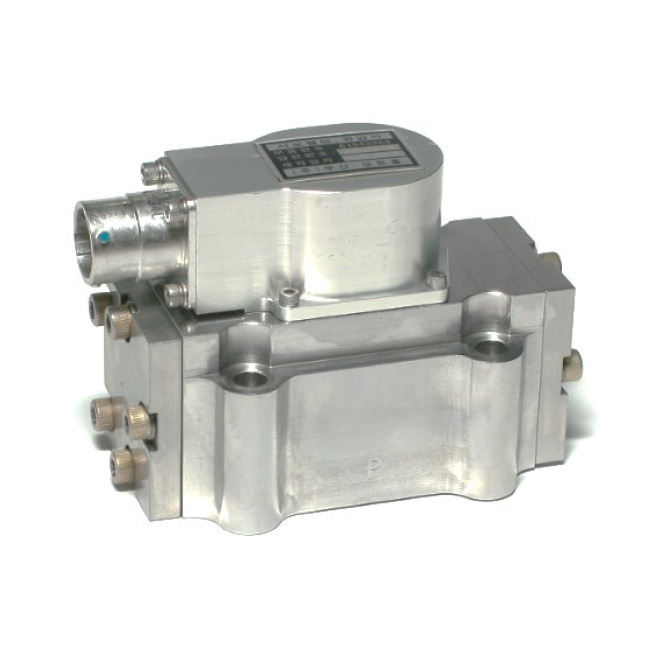

Stock Series NF44(Part number NF44-I10)
| Supply pressure | 3000psi |
|---|---|
| Rated flow | 170cis(44gpm) no-load 66cis(17gpm) at 1000psi valve drop |
| O-rings | NBR |
| Test fluid | MIL-PRF-83282 |
| Rated current | 10mA |
| Coil resistance | - 1000 ohms/coil |
| Coil connection | Individual coil |
| Connector | Bendix PC-02E-8-4P |
| Cable location | Over pressure port C2 |
